Cargas Network Architecture
Company
Cargas
Start time
20 August 2023
Delivery
26 August 2024
Feedback
Excellent Performance Feedback
Project Description
Overview
Cargas operates a network of NGV (Natural Gas Vehicle) stations across the country.

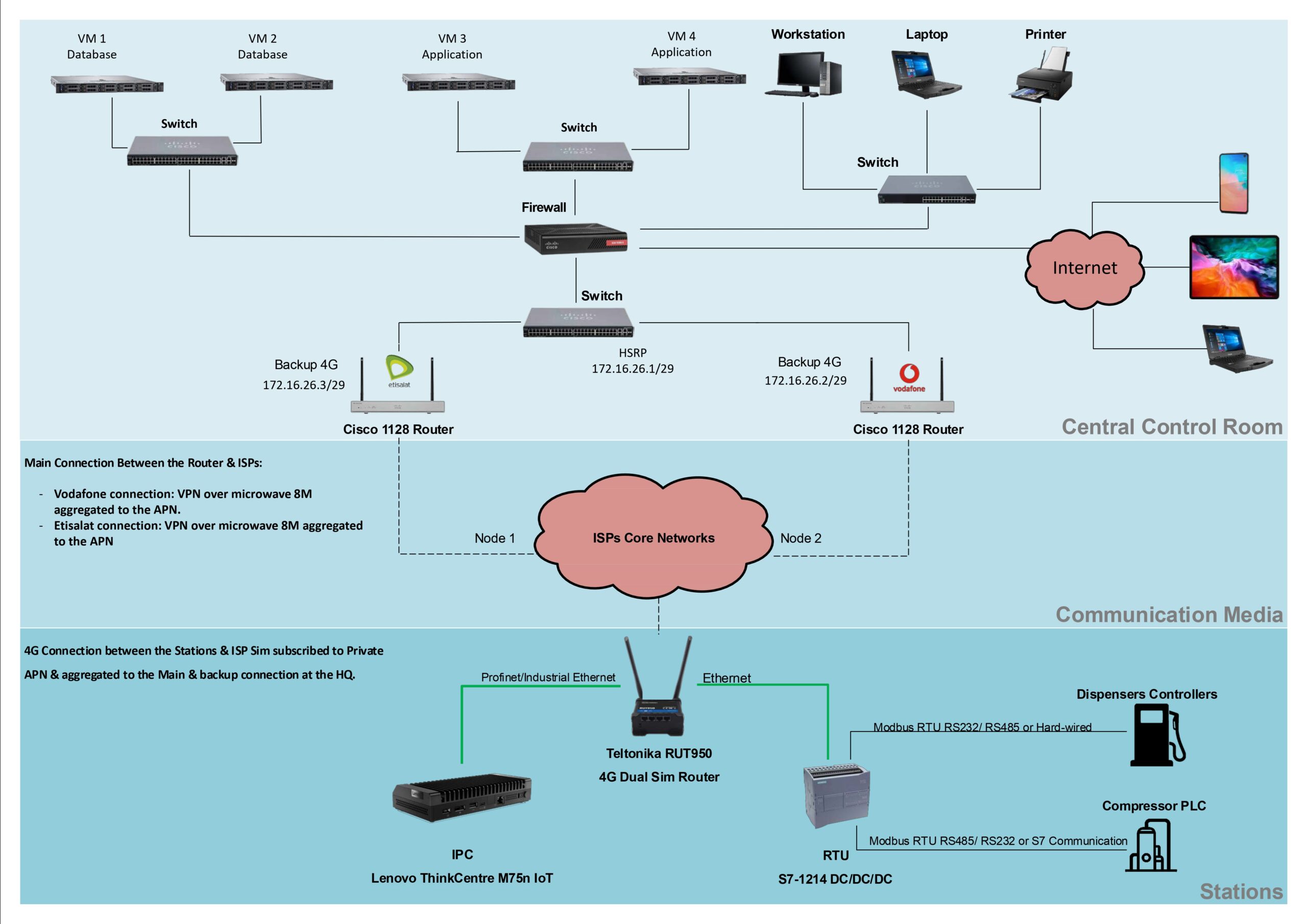

The project connects all Cargas NGV stations to the company’s headquarters through a secure GSM VPN network, enabling centralized monitoring and control.
Scope of Work

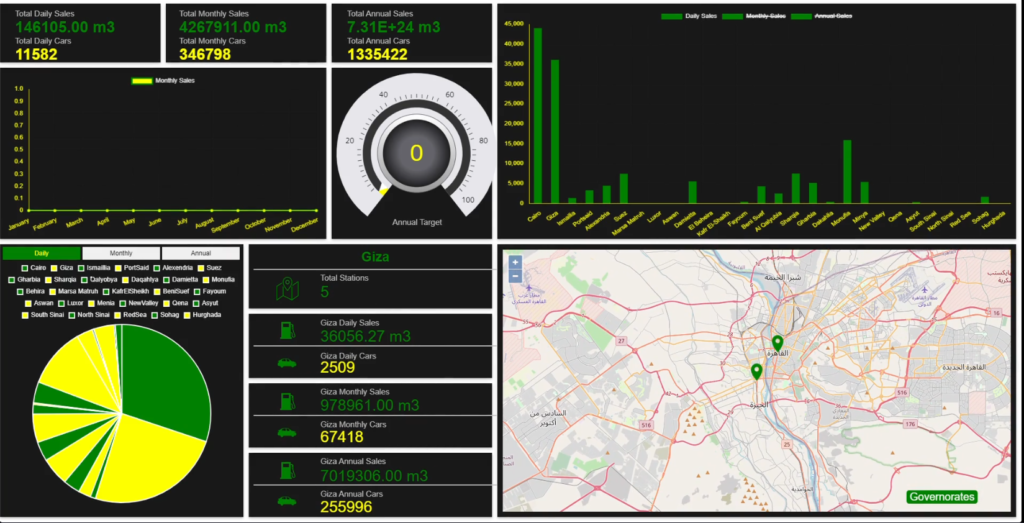

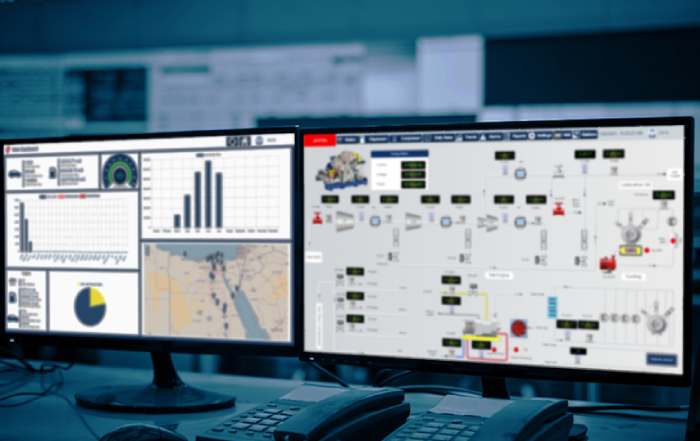

A dedicated SCADA system was developed to allow remote access to each station’s real-time operational data and provide full graphical visualization of the equipment.

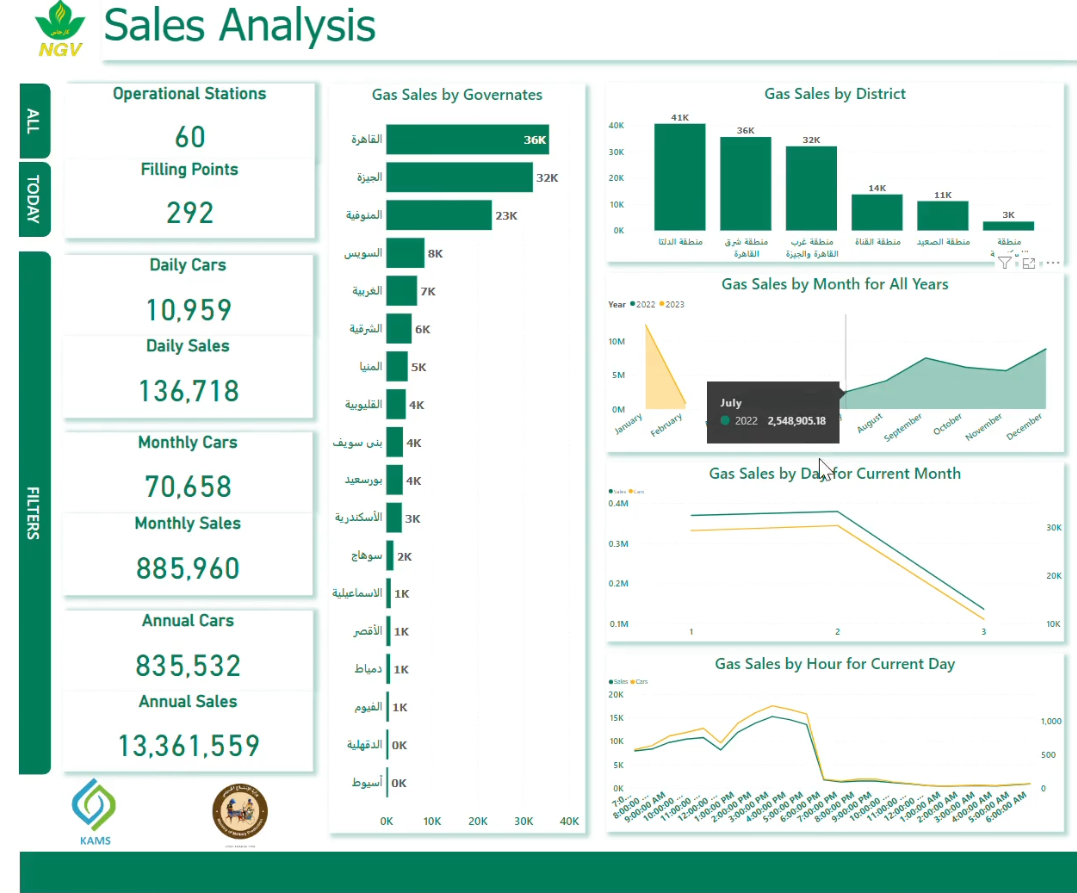

The system supports monitoring, performance tracking, and reporting to improve operational efficiency and decision-making.
Following Process
Network Design
01
Establish GSM VPN connectivity between all NGV stations and HQ.
SCADA Development
02
Configure SCADA for real-time data visualization and remote monitoring.
Integration & Testing
03
Link all stations to the central database, test connectivity and performance.
Training & Commissioning
04
Commission the system and train Cargas operators for daily use and maintenance.
Finalize the Project
The project provided a complete centralized SCADA monitoring system connecting all Cargas NGV stations to HQ.
It ensures secure communication, real-time visibility, and efficient control of all operational parameters.
Technical Summary:
Connection of all Cargas NGV stations via GSM VPN, with full SCADA implementation for online monitoring, visualization, and centralized data access.
